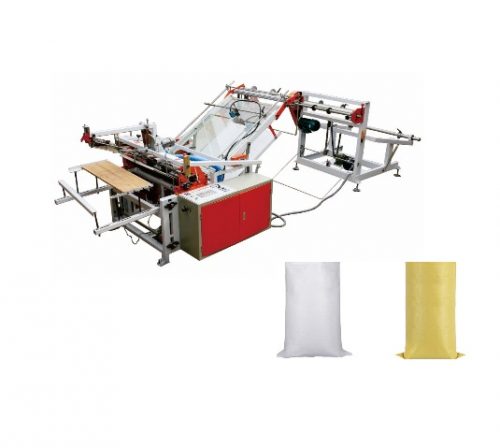

Auto cutting machine for woven bag sack bag and printing laminated bag

  1. High speed heat cutting for the printing bag and blank bag to save the labor.
  2. Touch screen, PLC, Servo motor to control the length of bag precisely.
  3. Auto counting, integrated feeding.
  4. Pneumatic rolling up, convenient operation.
Category:

Performace and characteristics:

  1. It is suitable for various kind of plastic woven bag (including laminated bag, printed bag)
  2.  It is fixed length and fixed mark cutting under the set rang.
  3.  Automatic counting, photocell tracking, remote control.
  4.  The length of cutting is accurate to 100-2500mm
  5. Max. width of bag is 750mm
  6.  Cutting speed is 20-70pcs/min.
  7.  Automatic unwinding lifting.
  8.  The blade can’t be stick and drop.

Main Technical Parameters:

MODEL EY-800
MAX. CUTTING WIDTH (MM) 750mm
CUTTING LENGTH (MM) 100-2500mm
CUTTING PRECISION (MM) +-1
PRODUCTION CAPACITY (PCS/MIN) 20-70
GROSS POWER (KW) 3
Weight (kg) 600
Installing Dimensions (L×W×H) (mm) 5500*1400*1300
