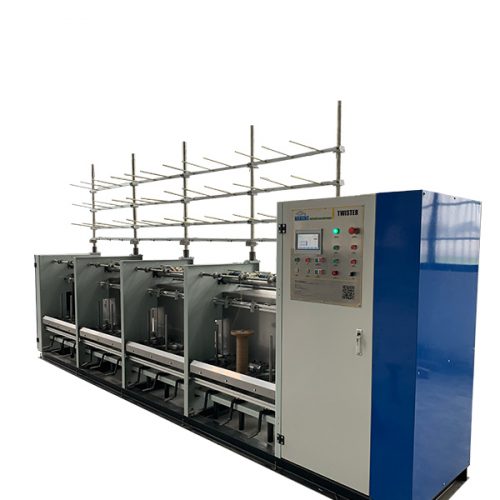

Cotton yarn twisting machine for mop /Polypropylene twine twisting machine for plastic rope pre

The Polypropylene twine twisting machine for plastic rope pre twisting has wide application scopes, modern design, big take-up amount, high peed. It is easy to operate and maintain, low noise and power consumption. It is a  high efficiency and output machine with twisting and stranding. Stranding and twisting of the twine can be finished in one time. It is suitable for primary twisting and re-twisting of all kinds of PE twine, PP twine, PET twine, nylon twine, cotton twine, and twisted ropes in small size.

Category:

The Auto control system Multi-function Rope-Making Machine is the new ring twister designed for the production of multithreaded twisted yarns using natural and/or synthetic fibres.

This machine is made to twist continuous filament yarns, monofilaments, strings for chemical filament, textured yarns, glass fiber, fishing net, twine, wool, fabric cord, cotton yarn, carpet, plied yarns of cotton, wool or chemical fiber and blends into cotton thread, knitting yarn and fine knitting wool.

Main Technical Parameters

NO ITEM ACS-DDR254/12
1 NUMBER OF GAUGE 12
2 SPINDLE GAUGE 300mm
3 MAX TRAVERSE(RING RAIL STROKE) 350mm
4 RING SPECIFICATION Ø254*38.1mm
5  WINDING MODEL H TYPE BOBBINS
6 POWER 0.75KW*12
7 SPINDLE DRIVE 11KW MOTOR DRIVER SPINDLE
8 SPINDLE BAR DIA 22MM
9 TWISTING Z OR S
10 SPINDLE SPEED MAX 3200 RPM
11  MAIL POWER 12KW
